JEOL-IDES Luminary Ultrafast TEM/Dynamic TEM

IDES is a leader and pioneer in the field of Ultrafast and Dynamic TEM, specializing in pulsed lasers and high-speed electrostatic beam blanking and deflection technologies. IDES’ products add time resolution to the TEM's exceptional spatial resolution enabling new applications and the exploration of the dynamics of specimens across a range of very fast time scales.

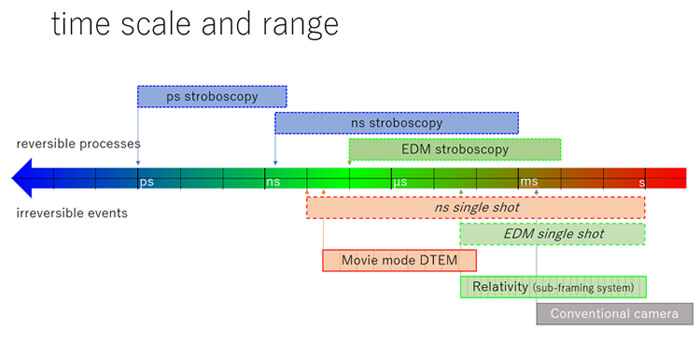

JEOL-IDES Luminary Ultrafast TEM/Dynamic TEM time scale and range
IDES (Integrated Dynamic Electron Solutions, Inc.)

Luminary Ultrafast TEM / Dynamic TEM

The Luminary time-resolved transmission electron microscope is designed for pump-probe experiments using one or more lasers to study transient phenomena in specimens.
Users can directly excite the sample with a laser and generate photoelectron probe pulses with a UV laser to probe the sample in imaging, diffraction, spectroscopy, or spectral imaging modes. The Luminary time-resolved TEM is an extremely versatile platform that allows users to choose their optical configurations with a multitude of laser types to conduct ps stroboscopy, ns stroboscopy, ns single shot (SS), and/or ns movie mode (MM) measurements, as well as conventional thermionic mode, in a single instrument.
The Luminary time-resolved TEM is based on a 200kV TEM JEM-2100Plus and is modified to introduce laser beams directed toward the cathode (electron source) and the sample, including laser optical systems as standard and the laser(s) as options.
Luminary Ultrafast TEM / Dynamic TEM
Relativity Electrostatic Subframing System
Electrostatic Dose Modulator (EDM)

Relativity Electrostatic Subframing System

The IDES Relativity Electrostatic Subframing System multiplies the frame rate of cameras on JEOL TEMs.
Microscopes equipped with Relativity achieve exceptional time resolution, data throughput, and advanced automation capabilities.

Electrostatic Dose Modulator (EDM)

The Electrostatic Dose Modulator (EDM) is a fast beam blanking system with a pre-sample electrostatic deflector, including electronics and software control. With EDM, the beam can switch on or off in less than 50 ns. This 100,000x improvement in blanking speed immediately improves the clarity of data taken at fast exposure times. EDM can also attenuate electron illumination without affecting imaging conditions, giving TEM and STEM users exceptional control over the dose on their samples. Cutting-edge electronics and software add-ons unlock advanced applications such as temporal dose structuring and STEM synchronization.

Luminary Ultrafast TEM / Dynamic TEM

  • Probe laser port for photocathode:
    provides an optical path to generate photoelectron probe pulses
  • Pump laser port for specimen:
    provides an optical path to directly excite the specimen using a laser
  • Optical delivery system:
    provides a column-mounted, enclosed optical path for probe and pump lasers
  • Laser workbench:
    can house various types of laser systems
  • Laser alignment and diagnostic tools:
    allows the user to precisely align the laser beams in real time
  • Laser alignment and diagnostic tools:
    allows the user to precisely align the laser beams in real time
  • Data acquision automation software:
    automates a time series of TEM data acquision
  • C0 lens:
    can enhance the signal intensity
Luminary Ultrafast TEM / Dynamic TEM

Relativity Electrostatic Subframing System

  • Time resolution:
    Relativity performs transitions between subframe regions in less than 100 ns.
  • Continuous kHz-scale video:
    Relativity can sustain subframe rates up to 100 kHz.
  • Custom applications:
    Integrate Relativity with an in situ holder, laser, IDES Electrostatic Dose Modulator, or other accessories.
  • Simple field installation:
    Relativity’s electrostatic optics are installed through an accessory port.
  • Out of sight, out of mind:
    Optics pneumatically retract out of the beam when they are not in use.
  • Acuity Edge analysis server:
    Automated data processing with segmentation, denoising, and drift correction helps you get the most out of your data.
  • Advanced control software:
    Seamlessly move between measurement programs with our intuitive interface, or use our powerful tools to design something new.
Relativity Electrostatic Subframing System

Applicable models:

JEM-ARM300F/300F2, JEM-ARM200F, NEOARM, JEM-F200, JEM-2100Plus, JEM-2100F
19,200 fps continuous video with atomic resolution, obtained using a gold nanoparticle sample by GRAND ARM™ at 80 kV.
One sub frame out of left tiling data with 52 μs exposure time.
Left: 19,200 fps continuous video with atomic resolution, obtained using a gold nanoparticle sample by GRAND ARM™ at 80 kV.
Top: One sub frame out of left tiling data with 52 μs exposure time.

How dose Relativity work?

Relativity installs an electrostatic optics assembly in a wide-angle camera port. These optics rapidly deflect the image data to different regions (or subframes) of the camera in a programmable sequence. Each camera readout contains a tiled array of crisp, blur-free subframes. Raw data is automatically analyzed to give a stack of images.

Electrostatic Dose Modulator (EDM)

  • Lightning-fast speeds:
    EDM systems achieve switching times faster than 50 ns.
  • Independent intensity adjustment:
    By rapidly turning the beam on and off with variable pulse widths, the EDM makes it easy to adjust the average beam intensity without changing the image conditions. A desktop accessory knob provides an intuitive interface to adjust the dose attenuation factor.
  • Dose structuring:
    Users can take control of their illumination by applying dose in pulses with variable durations as short as 100 ns and frequencies up to 1 MHz.
  • Modern control software:
    The EDM works out of the box as a fast beam blanker. Control software is included for programmable dose attenuation, logging, and more.
  • Integration:
    The EDM act as a fast reliable pre-sample beam blanker while supporting a companion Relativity Sub-Framing System as well as third-party hardware.
Electrostatic Dose Modulator (EDM)

Pulsed beam TEM illumination*

Pulsed beam TEM illumination
Pulsed beam TEM illumination
Dose attenuation by pulsed illumination with Frequency of 500 kHz (2 μs) in a high resolution STEM at 300 kV using Si[110] in the condition of pixel dwell time with 19 μs/pixel (1,024 x 1,024 pixels), by changing duration ration from 90% to 50% during acquisition of one STEM image in 20 s.
* Electrostatic Dose Modulator (EDM) offers two versions, EDM Basic and EDM Advanced. EDM Basic provides Pulsed Beam TEM Illumination, and EDM Advanced does both Pulsed Beam TEM Illumination and Pulsed Beam STEM Illumination.
